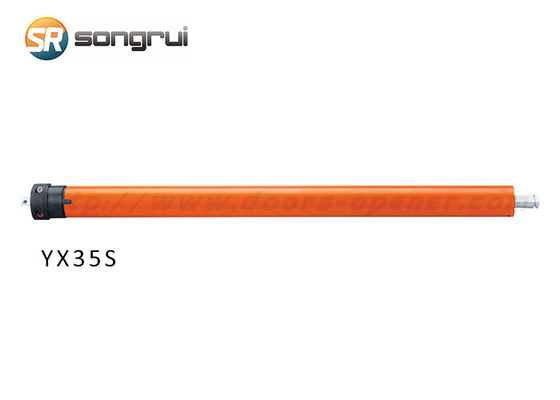

35S AC Rolling Door Motor Tubular Motor For Garage Door
Detailed product description:
1. Standard Type-Mechanical Limit.
2. Motors are the driving force behind many roller shutters and windows, awnings, garage doors, and projection screens.
3. The product emits minial noise during operation, are easy to conceal, compact in size and whisk to install.
Main technical parameters:
YS35S
10N.m/20 Kg
AC230V 50Hz
| Type | YX35S-3/28 | YX35S-6/17 | YX35S-6/28 | YX35S-10/17 | YX35S-13/12 |
| Rated Torque (N.m) | 3 | 6 | 6 | 10 | 13 |
| Rated Speed (rpm) | 28 | 17 | 28 | 17 | 12 |
| Rated Power (W) | 120 | 120 | 140 | 140 | 150 |
| Rated Current (A) | 0.52 | 0.52 | 0.60 | 0.60 | 0.65 |
| Running Time (min) | 4 | 4 | 4 | 4 | 4 |
| Protection Class (IP) | IP44 | IP44 | IP44 | IP44 | IP44 |
| Max. Turns (turn) | 39 | 39 | 39 | 39 | 39 |
| L1/L2(mm) | 522/450 | 522/450 | 522/450 | 522/450 | 522/450 |
YS35S
10N.m/20 Kg
AC120V 60Hz
| Type | YX35S-3/33 | YX35S-6/20 | YX35S-6/33 | YX35S-10/20 | YX35S-13/14 |
| Rated Torque (N.m) | 3 | 6 | 6 | 10 | 13 |
| Rated Speed (rpm) | 33 | 20 | 33 | 20 | 14 |
| Rated Power (W) | 102 | 102 | 105 | 105 | 110 |
| Rated Current (A) | 0.86 | 0.86 | 0.88 | 0.88 | 0.92 |
| Running Time (min) | 4 | 4 | 4 | 4 | 4 |
| Protection Class (IP) | IP44 | IP44 | IP44 | IP44 | IP44 |
| Max. Turns (turn) | 39 | 39 | 39 | 39 | 39 |
| L1/L2(mm) | 522/450 | 522/450 | 522/450 | 522/450 | 522/450 |
Our service:
Welcome OEM&ODM orders
1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
